Name: Industrial Automatic UV Laser Engraver Laser Printing Machine
SKU: 474468

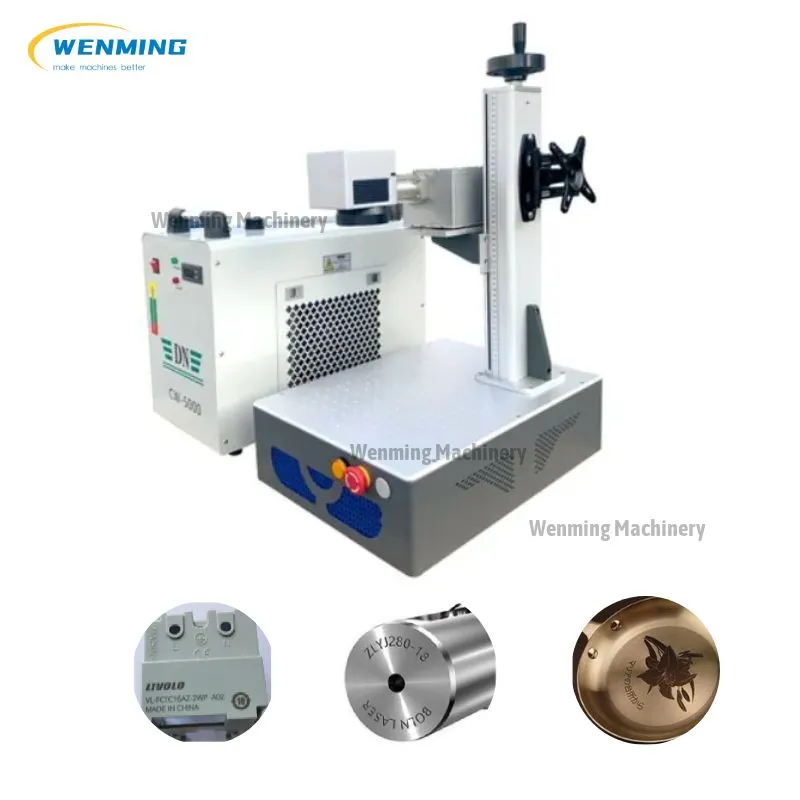

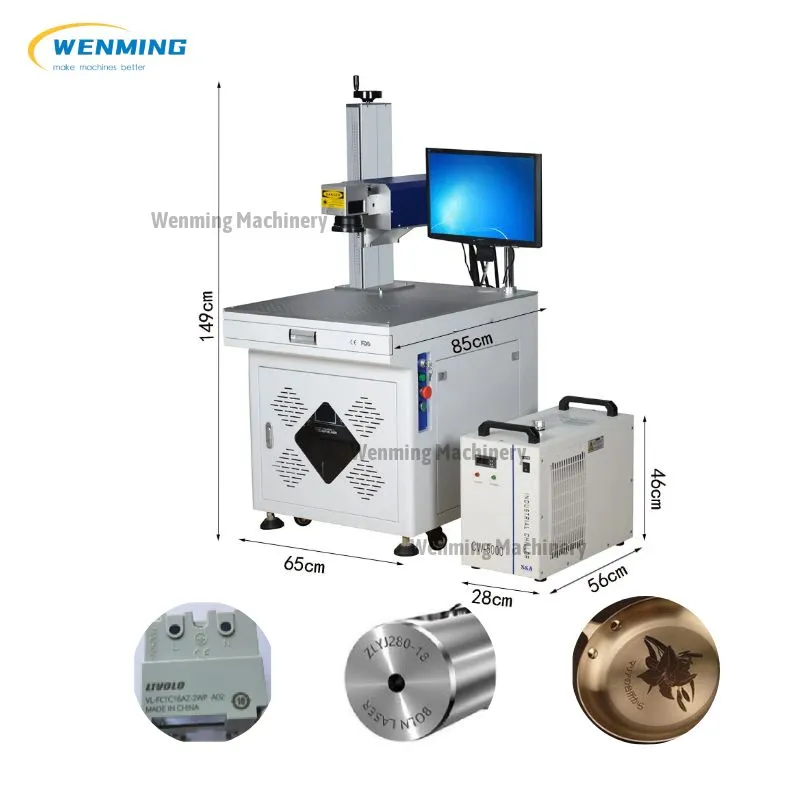

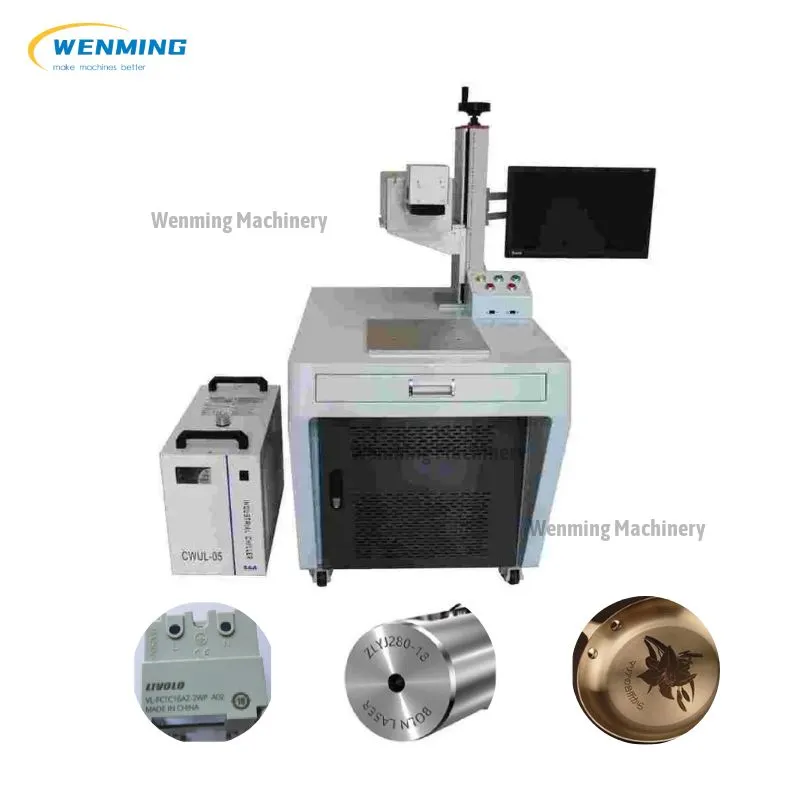

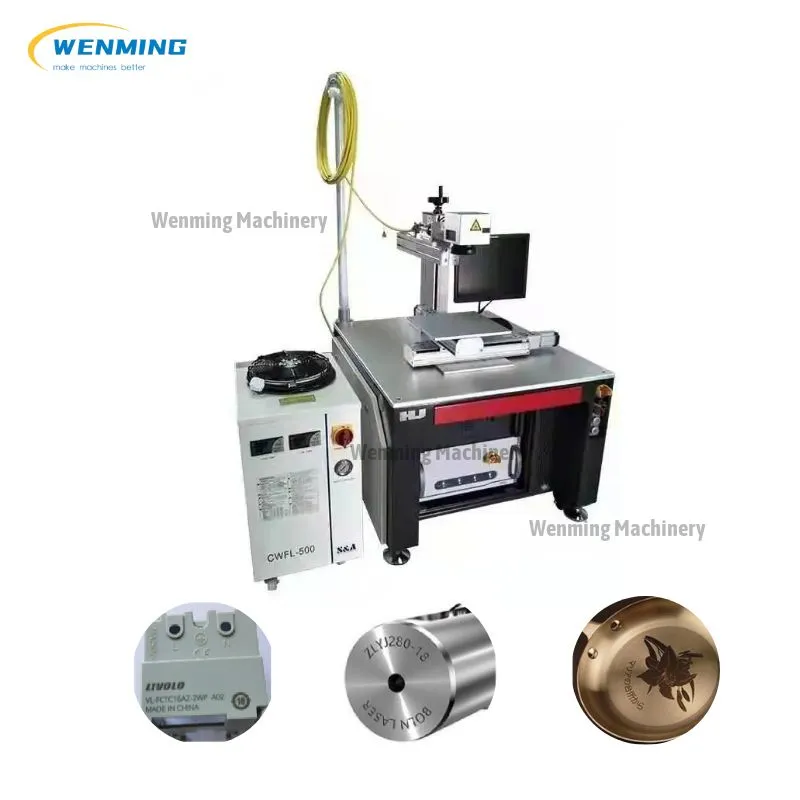

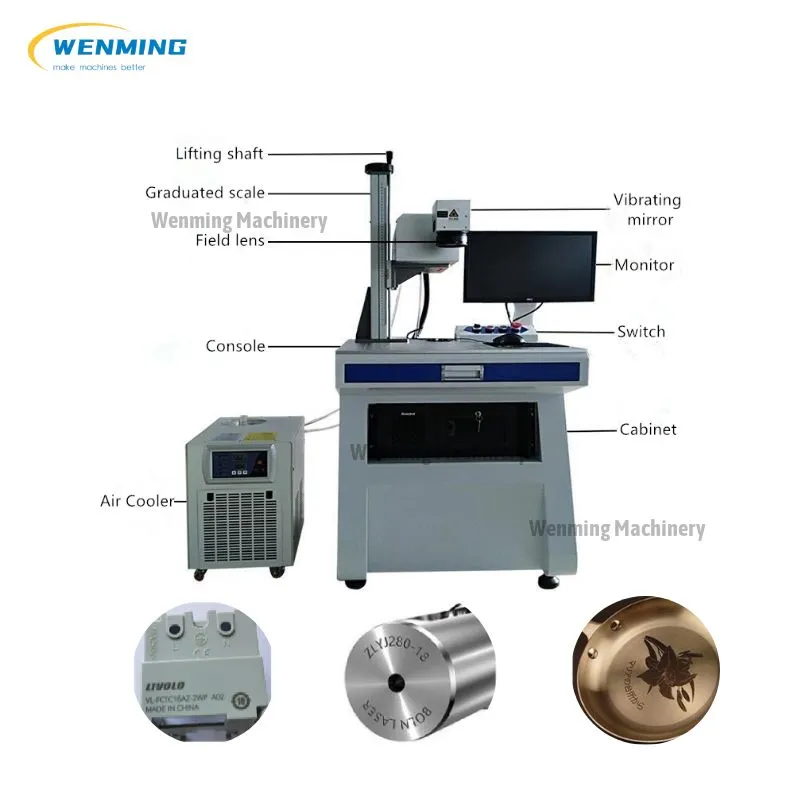

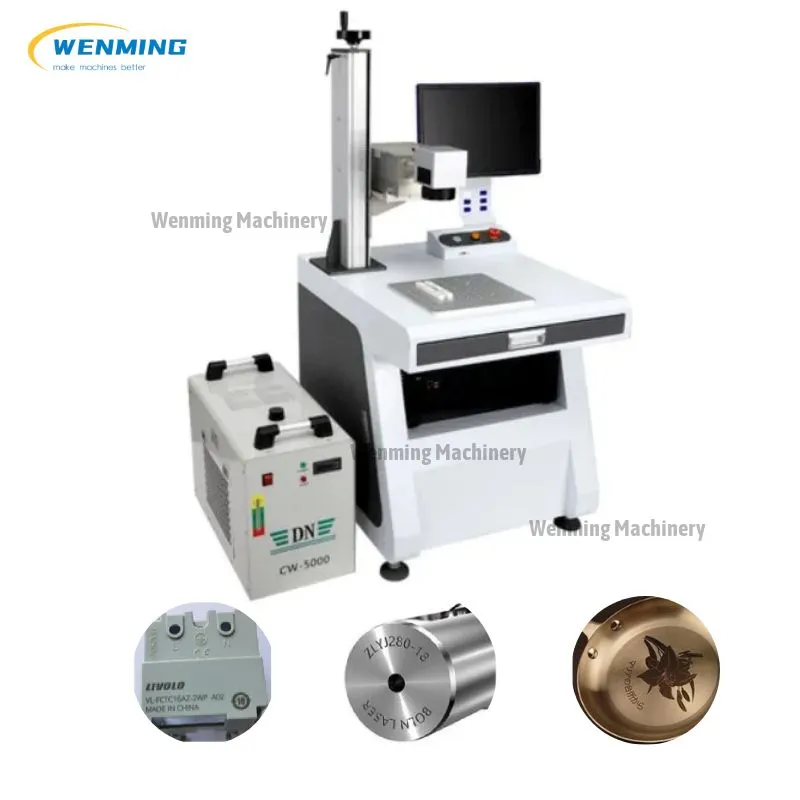

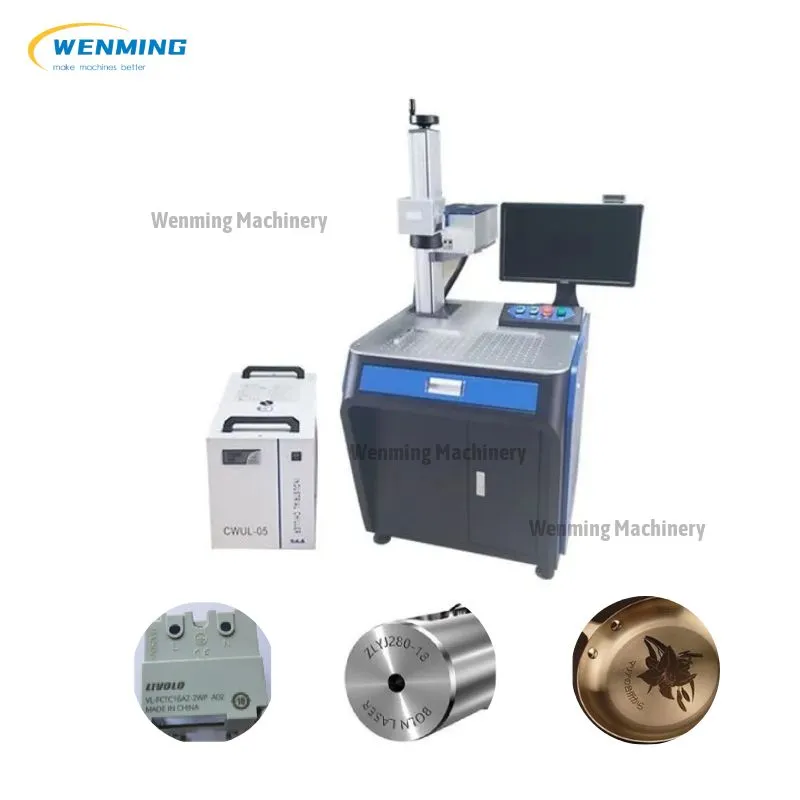

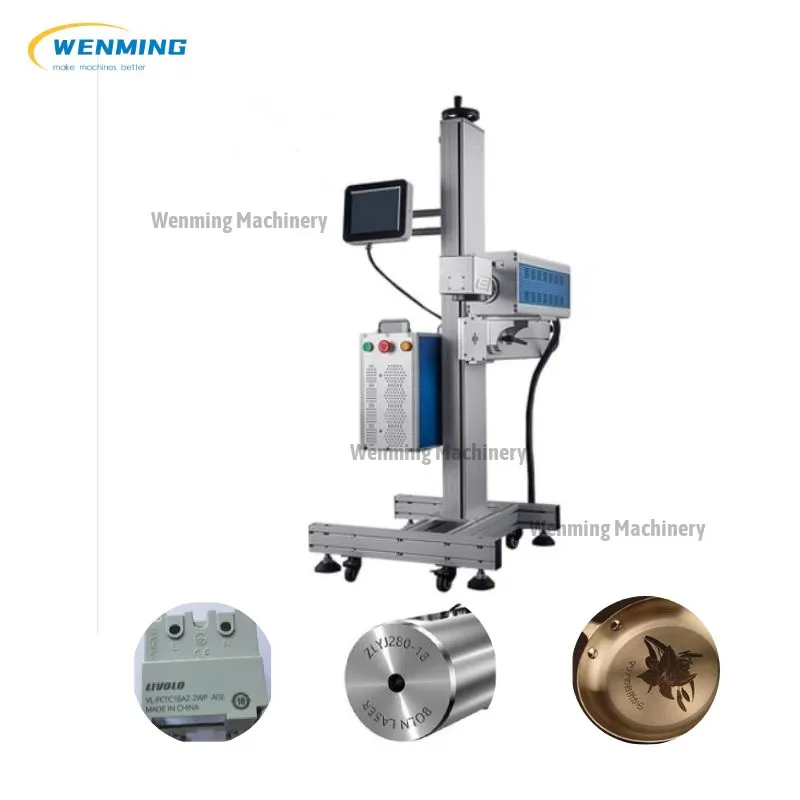

Industrial Automatic UV Laser Engraver Laser Printing Machine

1.Product introduction UV Laser Engraver:

UV laser is the product of choice for customers with higher requirements for marking effects because of its extremely small focused spot and small processing heat-affected zone, thus allowing ultra-fine marking and marking of special materials. UV laser is suitable for processing a wider range of materials, except for copper. Not only the beam quality is good, the focus spot is smaller, can achieve ultra-fine marking; wider range of application; heat-affected area is extremely small, will not produce thermal effects, will not produce material scorching problems; marking speed is fast, high efficiency; the machine performance is stable, small size, low power consumption and other advantages. Mainly used for ultra-fine marking, engraving, especially suitable for food, pharmaceutical packaging materials marking, punching micro-hole, high-speed division of glass materials and complex graphics cutting of silicon wafers and other applications.

2.Technical parameters of UV Laser Engraver:

Technical Indicators		WM-ZGJG
Laser parameters	laser	UV laser
	Laser wavelength	355nm
	Average output power	3W/5W/10W
	Laser life	100000Hour
	Modulation frequency range	20kHz~80kHz
Mirror parameters	Maximum Linear Speed	8000mm/s
	resolution	0.001mm
	Repeatability	0.003mm
Optical Output Characteristics	Marking range	F=160mm,scope175*175mm
	Minimum Line Width	0.01mm
	Minimum character height	0.2mm
cooling system	cooling method	Precise temperature control of high-efficiency water chiller
system property	laser power supply	0.5KW/AC220V/50Hz
	Optical path lifting platform	(cabinet type)
	Environmental requirements	0~25°C, humidity≤90%
